Name: Selo de óleo do eixo da roda TAN TAN-4 TAN-6 TAN-8 TAN-9 TANY Hidráulico de alta pressão Esqueleto Eixo de óleo Selo de cassete Selo
Brand: GUANGZHOU UP OIL-SEALS TRADING CO.,LTD
SKU: TAN TAN-2 TAN-4 TAN-5 TAN-6 TAN-8 TAN-9 TANY TANY-3 TANY-5 TANY-6 TANY-7 TANY-11
Price: 2.00 USD
Availability: InStock

Descrição de produto

Wheel hub oil seal TAN TAN-4 TAN-6 TAN-8 TAN-9 TANY TANY-3 TANY-7 Hydraulic High Pressure Skeleton Shaft Oil Seal Cassette Seal

1 . Detailed Product Description

TYPE: TAN TAN-2 TAN-4 TAN-5 TAN-6 TAN-8 TAN-9 TANY TANY-3 TANY-5 TANY-6 TANY-7 TANY-11

Standard or Nonstandard: Standard

Material: Rubber, FKM ,NBR, FKM, ACM, NBR70+PU

Style: Temperature oil high pressure oil seal

Pressure : 300 MPA

Place of Origin: TAIWAN

Brand Name :NFK ,CHR

Appliion Range :Hydraulic pump main shaft oil seal; Main pump of excavator or other construction Machines

2 . Applicantions:

Mechanical Motor pump ,Hydraulic pump

Construction machinery

excavator machinery

mining machinery

port machinery

Hoisting Machinery

Power transmission

Oil refineries

Off-highway

Manufacturing

Automotive

3. Most size for your choice.

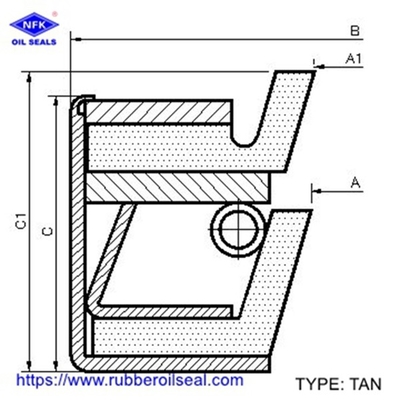

TAN 73.03x101.68x17.86	NBR 756	TAN-8 45x70x14/17 PL03	NBR70A BLK
TAN 73.03x101.68x17.86	NBR70A	TAN-8 50x75x13/14.5 NBR	NBR
TAN 88.90x114.30x22.86	NBR727+	TAN-8 56x80x13/14.5 ACM	ACM
TAN-10 65x92x10/15 NBR	NBR727 + NBR756	TAN-8 56x80x13/14.5 NBR70 BLK	NBR70 BLK

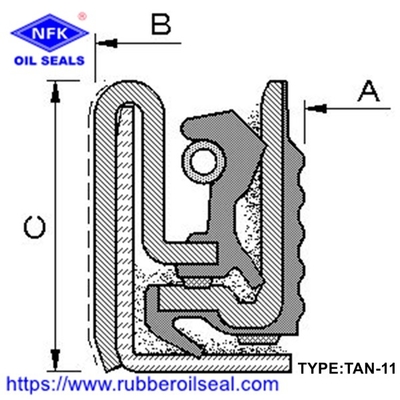

TAN-11 76.20x95.25x13.46 NBR	NBR70A	TAN-8 56x80x13/14.5 VITON	VITON

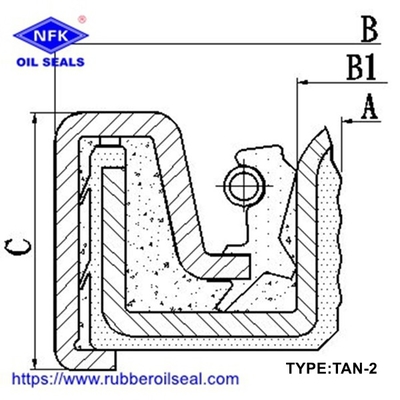

TAN-2 121.8x150x13 NBR	NBR70 BLK	TAN-8 58x82x15 NBR	NBR80
TAN-2 136.8x165x13	NBR	TAN-8 60x90x13.5/15.5 PL03	NBR70A BLK
TAN-2 136.8x165x13 NBR	NBR 756	TAN-8 62x90x14.5/16	NBR70

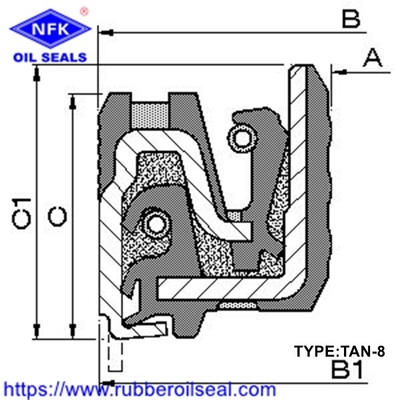

TAN-4 127x160x15.5/17.5	NBR70	TAN-8 65x90x13/14.5 NBR	NBR70
TAN-4 127x160x15.5/17.5 NBR	NBR70	TAN-8 70x95x10.5	NBR70 BLK
TAN-4 155x195x18 NBR70 BLK	NBR 70 BLK	TAN-8 85x110x13/14.5 NBR BLACK	NBR 70 BLK
TAN-4 155x195x18 VITON	VITON	TAN-8 85x110x13/14.5 VITON	VITON
TAN-5 70x95x13/14.5 NBR70 BLK	NBR70 BLK	TAN-8A 168x198x13/15.5 NBR70 BLK	NBR70 BLK

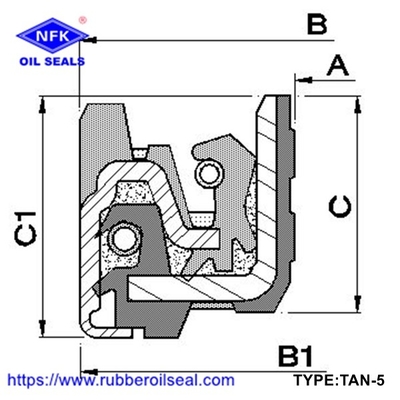

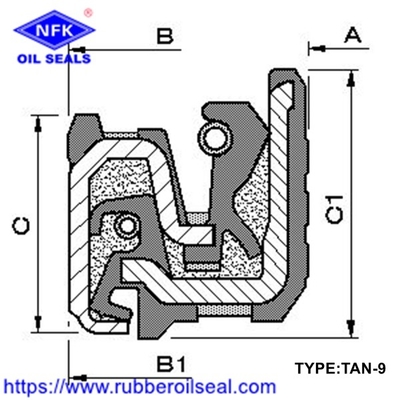

TAN-5 70x95x13/14.5 VITON	VITON	TAN-9 120x150x14.5/15.5 NBR	NBR70A BLACK

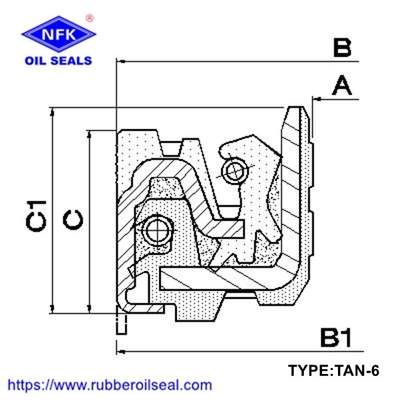

TAN-6 142x170x15/16	NBR727+NBR756	TAN-9 133.35x183x15	NBR 70
TAN-6 150x180x14.5/16 NBR70A	NBR70A	TAN-9 150.15x178x13/16 NBR70A BLACK	NBR70A BLACK
TAN-6 75x100x12/14 NBR70	NBR 727+NBR 756	TAN-9 35x60x13/14.5 NBR70 BLACK	NBR70 BLACK
TAN-7 33.40x52.3x16	NBR70A+N69001	TAN-9 53.2x78x13/14	NBR70A BLACK
TAN-8 65x90x13/14.5 FKM+NBR40102293(101495)	FKM+NBR	TAN-9 66.15x91x12.5/14 NBR	NBR70
TAN-8 100x130x14 FKM75+NBR70	(FKM75+NBR70	TAN-9 76x101x12 NBR	NBR70A BLK
TAN-8 101.6x142x17.5/20 NBR	NBR	TANY 193x222.5x13.5	NBR/TPU
TAN-8 107.95x152.4x15.5/17.5 NBR	NBR 70 BLK	TANY 65x90x17.5	A17066+PU White
TAN-8 110x140x14.5/16 NBR	NBR70A BLK	TANY-1 46x65x21	NBR70+PU
TAN-8 110x140x14.5/16 VITON+NBR	VITON+NBR	TANY-10 53x80x19/25 NBR(NILE BLUE)+PU	NBR+PU

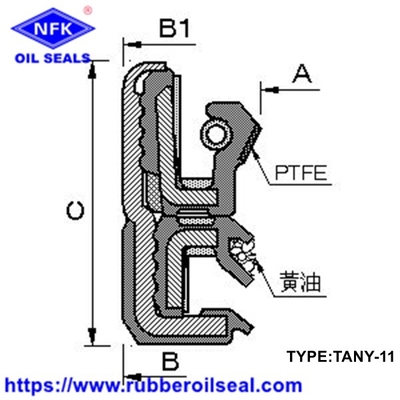

TAN-8 130x155x12.5/16	NBR70	TANY-11 30x42x14	HNBR + PTFE
TAN-8 130x155x12.5/16 HNBR	HNBR	TANY-11 35x47x14	HNBR + PTFE
TAN-8 130x160x14.5/16 CO NBR70	NBR70	TANY-1W 37x52x14	NBR70+PU
TAN-8 136.8x165x13/14.5	NBR	TANY-2 56x75x16.5	NBR+PU+PP

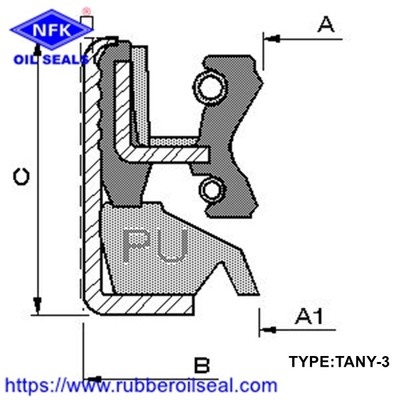

TAN-8 140x170x14.5/16 NBR70A	NBR70A BLACK	TANY-3 35x52x18.5	N67098
TAN-8 140x170x14.5/16 VITON	VITON75	TANY-3 40x55x15.5	NBR70+PU
TAN-8 145x175x14.5/15.5 NBR70	NBR70	TANY-3 40x60x18.5	NBR70+PU
TAN-8 150x176x15.5/16	NBR70A BLACK	TANY-3 42x62x21.5	NBR70+PU
TAN-8 155x190x14.5/16 NBR70	NBR70	TANY-3 45x65x15	NBR70+PU
TAN-8 155x190x17.5/19 NBR70 BLK	NBR70 BLK	TANY-3 45x65x18.5	NBR70A+PU
TAN-8 162x200x14/17	NBR70	TANY-3A 46x65x16.1	NBR70+PU
TAN-8 165x190x15.5/17 NBR	NBR70	TANY-4 50x70x18.2/20 NBR80+PU	NBR80+PU

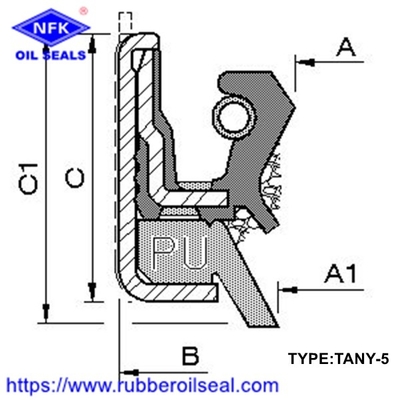

TAN-8 165x195x16.5/18 NBR70 BLK	NBR70 BLK	TANY-5 39.5x54x12.5/13.5 VITON+PU	VITON+PU

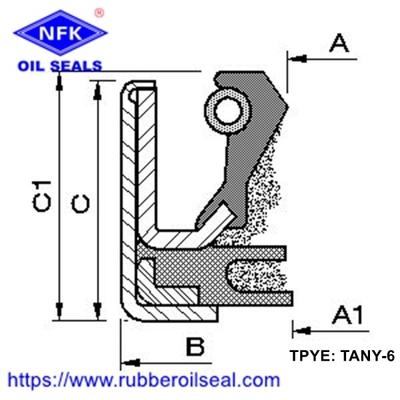

TAN-8 170x200x14.5/16.5 NBR70 BLACK	NBR70	TANY-6 57.15x73.025x12.7	ACM+FKM
TAN-8 170x200x14.5/16.5 VITON	VITON	TANY-6A 95.25x136.53x19.05	NBR70 BLK

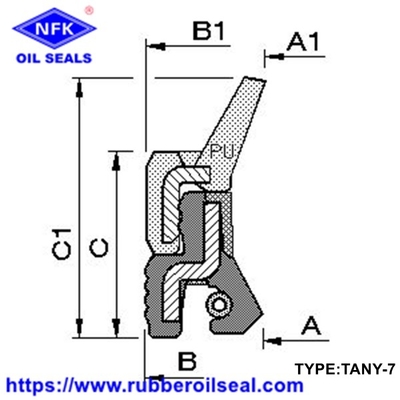

TAN-8 170x200x17.5/21 NBR70 BLACK	NBR70 BLACK	TANY-7 32x40.7x10.5/16.5	NBR80+PU
TAN-8 178x208x16/18 NBR70	NBR70	TANY-7 32x42x10.5/16.5	NBR++PU
TAN-8 190x220x16/18 NBR 70	NBR 70	TANY-7 34x44x10.5/16	NBR80+PU
TAN-8 210x240x16/18	NBR70A BLK	TANY-7 35x45x10.5/16	NBR++PU
TAN-8 210x240x16/18 ACM	ACM	TANY-7 36x46x10.5/17	NBR++PU
TAN-8 35x62x13.5/14	NBR70A BLACK	TANY-7 38x48x10.5/17	NBR++PU
TAN-8 35x65x14.5/17 NBR	NBR70A BLACK	TANY-7 40x50x10.5/17	NBR80+PU
TAN-8 40x65x13/14.5 NBR70A BLACK	NBR70A BLACK	TANY-8 47.63x66.62x12.70 NBR	NBR80
TAN-8 45x70x14/17 NBR BLACK	NBR70A BLK	TANY-9 45x62x16 NBR+泡綿+PU	NBR++PU

4. The Characteristics :

1. Oil seal edge, elastomer

2. The sealing lip short and soft with spring

3. With dustproof lip

4. Resistance to pressure oil seal, of a whole in the larger diameter used under high pressure

5 Used for Hydraulic pump main shaft oil seal

Selo de óleo do eixo da roda TAN TAN-4 TAN-6 TAN-8 TAN-9 TANY Hidráulico de alta pressão Esqueleto Eixo de óleo Selo de cassete Selo 95

4...Packaging & Delivery

Packaging Details : The original factory packaging

Dellvery Time :

Quantity(Pieces)	in stock	if goods out of stock Urgent shipment air freight	if goods out of stock, the new order
Dellvery Time(days)	1-2 day	7-15 days	To be negotiated

Way by delivery: We can arrange the shipping by Sea,air express,DHL ,EMS, FADEX,TNT.
Payment Term : Western Union, Cash, Bank, PayPal.HSBC,CITY BANK.

5. Product characteristics

1. Speed = >Mechanical movement speed is high, the lubriion oil film may be destroyed, because of not good lubriion and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good

2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃ ~ + 80 ℃ temperature range.

3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5 MPa.

4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load

The availability of highly developed nitriles resistant sa to oil water and many other fluids has widened the field of unit seal appliion to a great extent , and provided precise contions of machining accuracy finish and lubiion are maintained in the mechaisms to which these seals are applied they are capable of giving excellent service within a wide range of temperatures and speed conditions.

It is hoped the information given here will help the designer and user to choose the correct type of sealing unit for his appliion ,A publiion of this kind cannot cover every aspect of fluid sealing ,nor can it answer every puery which is likely to arirsre ,When enpuiring please state

- The nature of appliion

- Fluid to be sealed

Minimum , maximum and working fluid pressures

Minimum , maximum and working teperatures

Shaft speed and lubricant used

Estimated toal annuad demand and weekly call-off

6.Product picture display

Selo de óleo do eixo da roda TAN TAN-4 TAN-6 TAN-8 TAN-9 TANY Hidráulico de alta pressão Esqueleto Eixo de óleo Selo de cassete Selo 99

8. FAQ

Q1: To which places have you exported?

A: North America, Europe, Middle East, Africa, Southeast Asia ,Pacific and so on.

Q2: Do you have a minimum order requirement?

1. Small trial order is acceptable,Our prices are based on the number of steps. Please send your demand quantitatively.

2.We seriously treat every customer, in good faith with them to do business, make friends, no matter how much volume, we will provide a full range of services, one-stop sealed solution.

3. Please contact us for more details if you want to check products.

Q3: How to guarantee your after sales service?

1. Strict inspection during production.

2. Recheck the products before shipment to ensure our packaging in good condition.

3. Track and receive feedback from our customer.

4. We can arrange the shipping by Sea,air express,DHL ,EMS, FADEX,TNT.

Q4: What are your payment terms ?

A: Western Union, Cash, Bank, PayPal.HSBC,CITY BANK.

Q5: Why choose our products:

1. We are a leading professional company of oilseals trading and can provide you a wide range of oil seals,Our oil seals has best quality and best service with competitive price.

2. We have over 26 years of hydraulics Solutions , etc. Our mission is to provide the products with higher quality, lower cost and shorter lead time to our clients.

If you are looking for a company to help you building your own brand of seals , seal kits , o-ring kits , or any other OEM services for other products . You have found the right one . Our company provides professional OEM services on seals seal kits , o-ring kits and other products . For details ,
please contact us . We will reply you as soon as possible .
A. In order to give you fast and accurate pricing information, we need some details about the machine engine/appliion and the part number of the part you want. And, size and pictures will be better if you are not sure about it. We can check and help you with it.
B. If you can not find the parts you want here, please contact us for an inquiry. Thank you.
If you can not find the parts you need, please contact us with details.
Contact me: fion66652@aliyun.com

Etiquetas:

Place of Origin	TAIWAN
Marca	NFK
Model Number	TAN TAN-2 TAN-4 TAN-5 TAN-6 TAN-8 TAN-9 TANY TANY-3 TANY-5 TANY-6 TANY-7 TANY-11
Minimum Order Quantity	10 PCS
Preço	Negotiations
Packaging Details	The original factory packaging
Delivery Time	(1)1 day. MIne order (2)7-15 days large order.
Termos de pagamento	TT, Western Union, dinheiro, banco, PayPal.HSBC, BANCO de CIDADE.
Habilidade da fonte	5000set /month

Tipo	TAN TAN-4 TAN-6 TAN-8 TAN-9 TANY TANY-3 TANY-5 TANY-6 TANY-7 TANY-11	Name	shaft oil seal, Standard or Non standard rubber oil seal, oil sealing
OEM	Aviable, OEM é dado boas-vindas, aceitável, dado boas-vindas altamente,	Material	Rubber, FKM ,NBR, FKM, ACM, NBR70+PU
Cor	Negro, Azul + Preto, Marrom, Azul	Appliion Machine	Ship, Excavator, Pump Hydraulic Machine Rotary Shaft, Rotary Drilling Rig, Hydraulic Loader
Style	Mechanical Seal, O Ring, Hydraulic, Oil seals, Floating Seal	usando a temperatura	NBR:-20°C~+120°C
Properties	Future Resistant To Heat, Oil, Fatigue, Aging And Friction	Standard or nonstandard	Standard, Standard & Custom
Packaging Details	Original country packing	Way By Arrival	Shipping By Sea,air Express,DHL ,EMS, FADEX,TNT.
Destacar	Selo de óleo do eixo do esqueleto de alta pressão , TANY Selo hidráulico de óleo de alta pressão , Selo hidráulico de óleo de alta pressão
